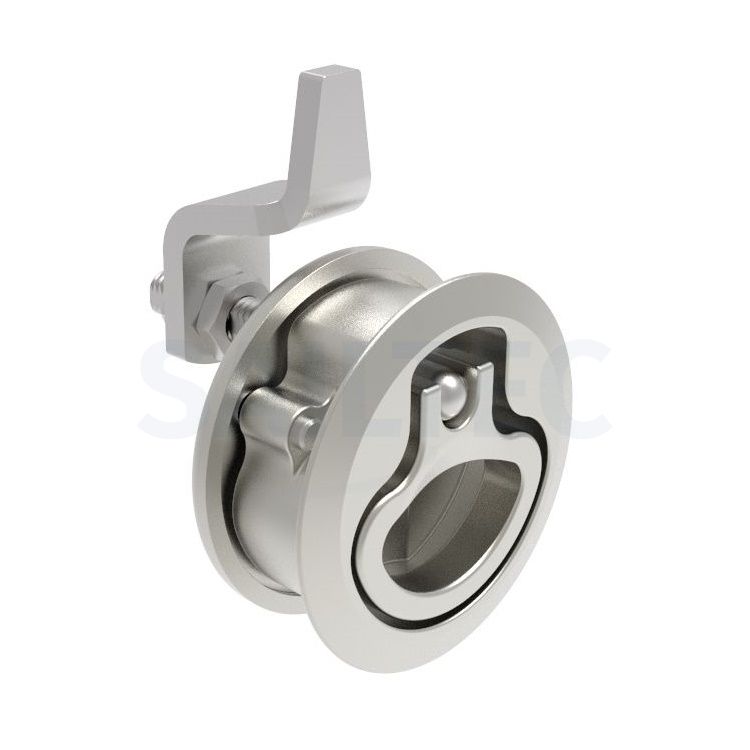

Southco M1 Compression Latch 61.5mm OD, Stainless Steel, Non Locking

Southco M1 Stainless Steel Compression Latch with Mounting bracket and Pawl

• Outer diameter 61.5mm
• Mounting hole 50mm

The sleek flush-mount design of these latches gives designers a more stylish alternative for delivering the functionality of compressive action that provides a watertight seal and dampens vibration to reduce noise and rattle. Simply lift the handle to release compression; and turn to have the pawl clear the frame.

- Lift-and-turn action eliminates wear and tear on pawl and frame
- Durable corrosion-resistant materials withstand use in outdoor environments
- Supplied with gaskets and "O" rings for complete sealing where a watertight fit is desired
- Installs conveniently in a single round hole
- Concealed fasteners provide a clean exterior appearance

Size Series: Small size
Material: Stainless Steel
Access Restriction: No Restriction

Please check for what grip range you need the latch

Grip Range 1:
Pawl forward: x - x*28mm
Pawl reversed: 63 - 76mm
x = (min.Grip) = door thickness + Offset
Grip Range 2:
Pawl forward: x*27 - 40mm
Pawl reversed: 51 - 64mm
x = (min.Grip) = door thickness + Offset
Grip Range 3:
Cam forward: 39 - 52mm
